Canrace builds and installs complete production lines for deep-drawn round, conical, rectangular or irregularly shaped canbodies. It allows three-piece can production, milk powder tin production, beverage can and food can production.

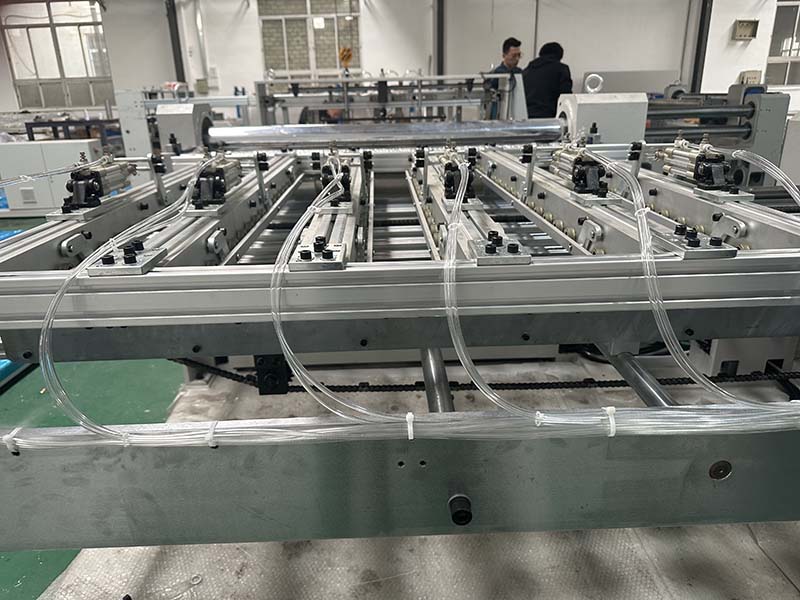

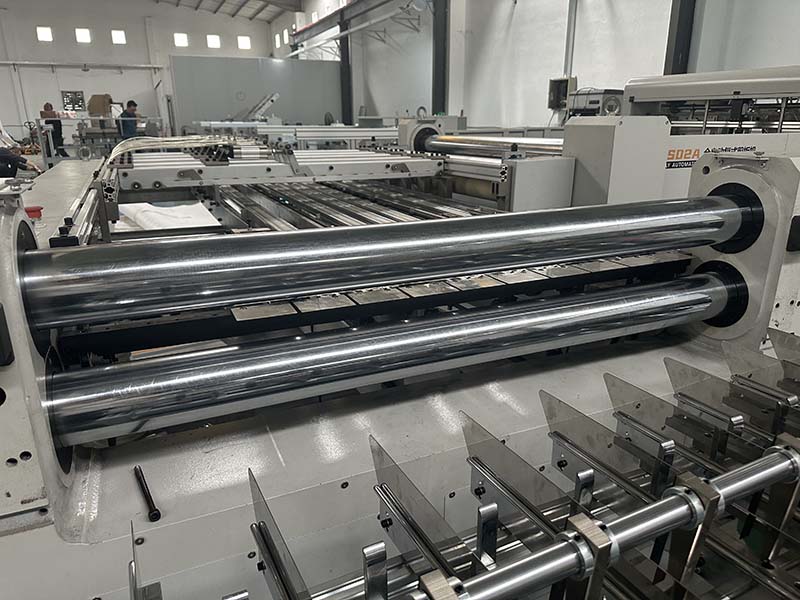

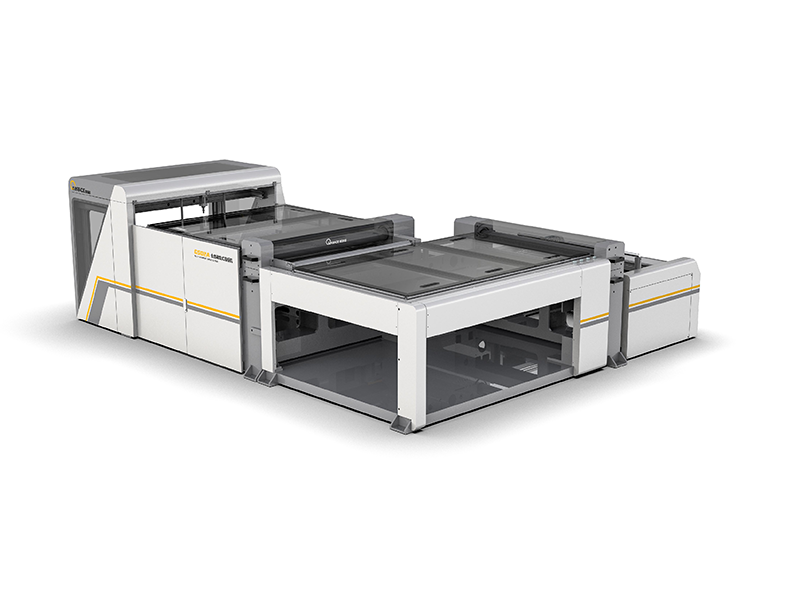

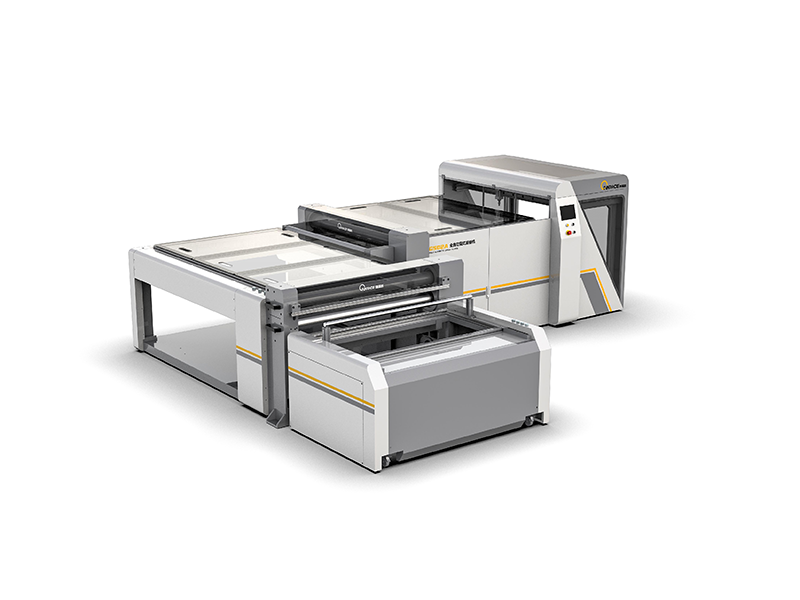

Automatic Sheet Metal Slitter, RS-GS02A
Parameters
- Sheet thickness: 0.14-0.45mm
- Max. cutting size: 1200×1200mm
- Min. cutting size: 600×600mm
- Slitting lanes at 1st cutting: 6 lanes
- Min. cutting width at 2nd cutting: 70mm
- Dimension tolerance: ±0.05mm (≤100mm in length)
- Diagonal tolerance: ±0.05mm (≤100mm in length)
- Speed: 30pieces/min
- Power: approx. 7kW
- Compressed air: 0.6MPa
- Standard configurations: tungsten carbide circular blades (6pcs at 1st cutting, 6pcs at 2nd cutting)
Send Inquiry
Configurations
- PLC: Omron
- VFD: Mitsubishi/Omron
- Motor: Taiwan Li Ming

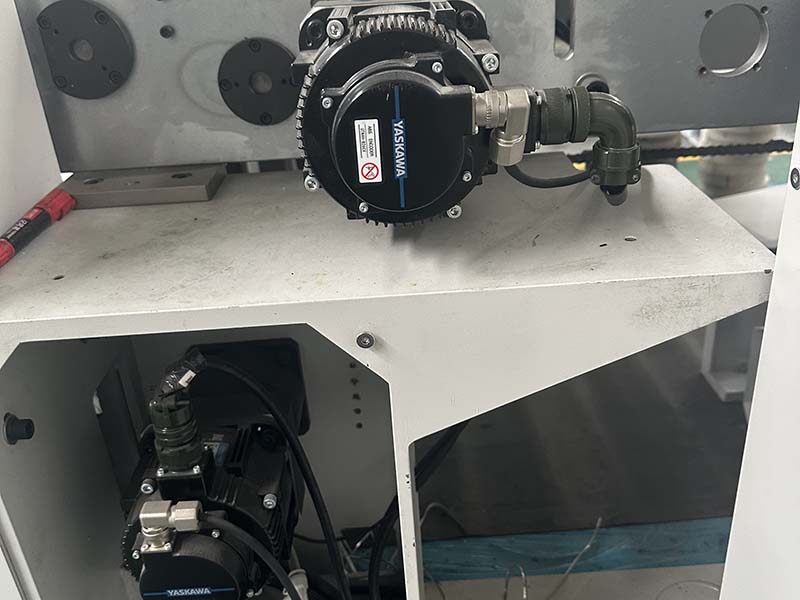

- Servo motor: Yaskawa (3 sets)
- Pneumatic components: AirTAC
- Bearings: NSK/NTN
- Sensor: SICK
