Automatic Can Body Welder, RS-360

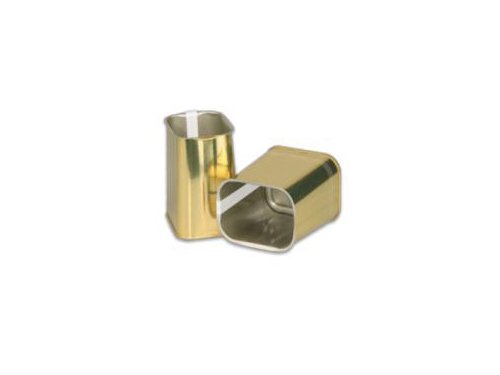

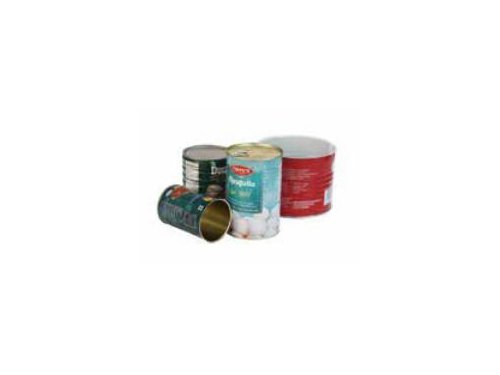

The RS-360 automatic can body welder is mainly used in three-piece canbody production line to complete the processes of can body rounding, conveying and welding. It is suitable to produce cans of different diameters (52-153mm), different heights (60-320mm), different thicknesses (0.14-0.4mm) and production efficiency ranges between 100 and 200 cans per minute. Meanwhile, canbodies of different types, such as milk powder tins, aerosol cans, beverage cans, etc. can be welded.

Send Inquiry

We use imported machining centers to process the main body of canbody welding machine, core components are from world's reliable suppliers, and electrical parts and control system are of internationally famous brands. Besides, Canrace adopts NSK bearings, servo motor controlled NTN controlling system, ensuring high precision and stable production efficiency.

• Multi-servo control system for tinplate feeding, pushing-in, cable driving, pushing-off and palletizing, able to achieve fast synchronized adjustment and stable transferring.
• Sine wave inverter system allows stable welding and clear welding bead in high-speed welding process.
• Adjustable current load can test current in bonding part and two ends of cans.
• Automatic control system: self-adjustment of can heights, automatic calibration.
• Optional mercury-free welding wheels to meet the quality standards in food production.
• Optional online current detection system to supervise the current waves during welding, thus the rejection rate will be lowered.
• All driving systems are designed with safety shield to provide great protection.
